A cart-specific upgrade path
Confirm First.
Choose with Clarity.
The specifications below identify three DigiMarker battery models. Model choice depends on cart-specific electrical and physical requirements that must be confirmed before purchase or installation.
System Voltage
Identify the current nominal system and charging configuration.
Battery Bay
Measure the available tray and secure mounting space.
Controller
Check controller limits and the cart’s electrical demands.
Charger
Confirm the charging equipment required for the selected battery.
12V Loads
Identify lights, audio and other low-voltage accessories.

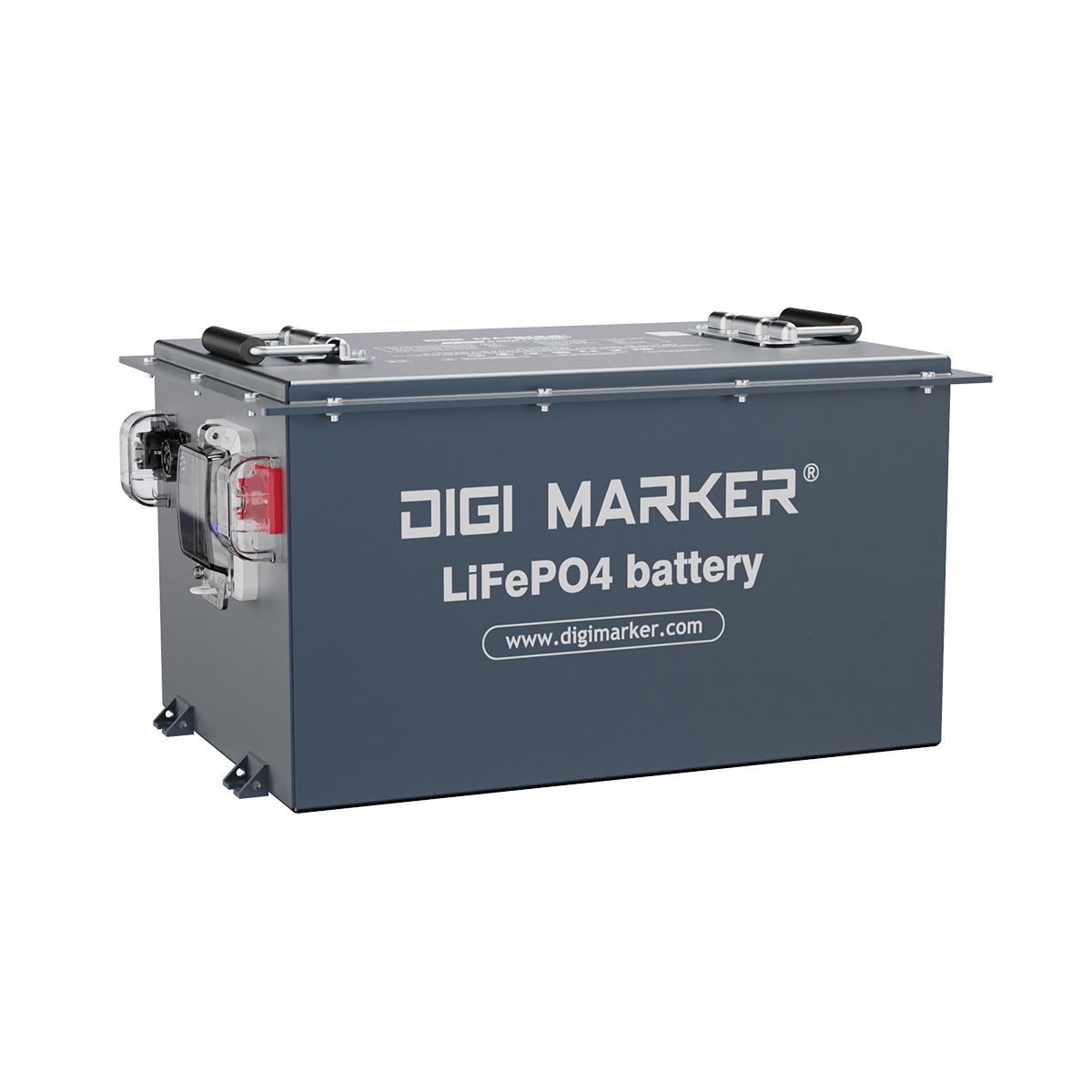

HP Series
36V 105Ah
- Nominal voltage38.4V
- Capacity105Ah
- Energy4.032kWh
- Continuous current250A
- Weight83.1lb
- Dimensions17.84×12.54×9.4in
HP Mini
48V 125Ah
- Nominal voltage51.2V
- Capacity125Ah
- Energy6.4kWh
- Continuous current250A
- Peak current1000A / 3s
- Weight97.4lb
CS Standard
48V 100Ah
- Nominal voltage51.2V
- Capacity100Ah
- Energy5.12kWh
- Continuous current200A
- Weight102.2lb
| Model | Nominal voltage | Capacity | Energy | Continuous current | Weight |
|---|---|---|---|---|---|
| HP 36V 105Ah | 38.4V | 105Ah | 4.032kWh | 250A | 83.1lb |
| HP Mini 48V 125Ah | 51.2V | 125Ah | 6.4kWh | 250A | 97.4lb |
| CS Standard 48V 100Ah | 51.2V | 100Ah | 5.12kWh | 200A | 102.2lb |
Before a Model Is Selected
- Confirm the cart’s nominal voltage.
- Measure the battery bay and mounting points.
- Review controller and charging requirements.
- Identify 12V accessories and supporting components.
Confirm Current Details
Call Coconut Carts for any battery detail not shown here and to confirm the requirements of your specific cart.
